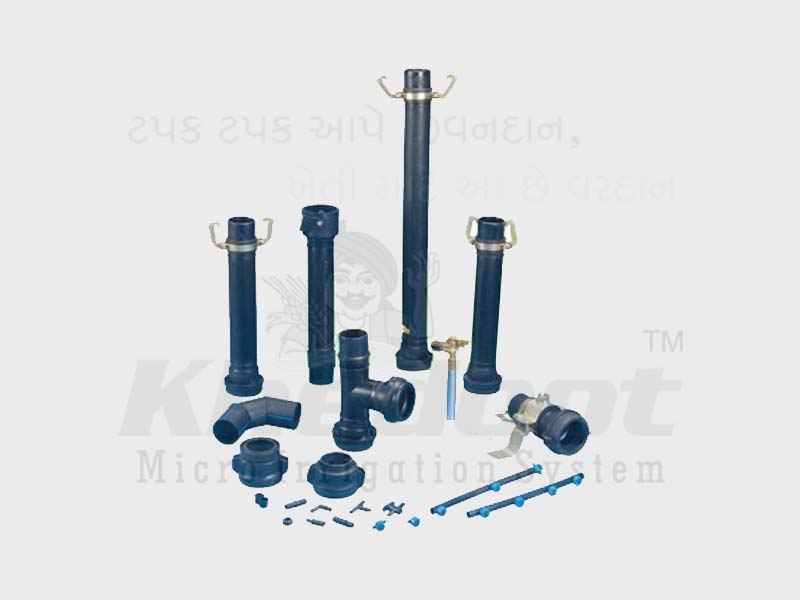

Khedut Sprinkler pipes are suitable for Sprinkler Irrigation System & are available in 63 mm. to 110 mm. size, having length of 6 mt. & 3 mt. with male-female Coupler.

The pipes to be used in the system are made up from 100% High density polyethylene granuals. It also posses the IS standard mark as per IS : 14151-99 Part – I and IS : 14151 – 99 Part – II. “Khedut” brand sprinkler pipes are light in weight, flexible & highly durable.

Versatile Application:

The major & end use of “Khedut” Sprinkler Pipes are

• Sprinkler Irrigation System
• Potable water supplies under water piping.
• For the purpose of left irrigation.
• Directly from canals, dams etc.

Techno Economic Advantage:

“Khedut” Sprinkler pipes have various advantages over the conventional pipe system. These are

• Outstanding resistance to conventional chemical & environments.
• Light in weight.
• Available in 6 Mt. & 3 Mt. length.
• Exception durability and long life.
• Excellent flow characteristics.
• Absolutely light & lick proof.
• Anti-Cracking male-female coupler having leak proof facilities

Classification of “Khedut” Sprinkler Pipe

This pipes are classified by pressure rating (working pressure) at 27’C in IS : 14151 Pt. I & Pt. II

Class of Pipe	Working Pressure
Class I	0.25 MPA (2.5 Kgf/cm2)
Class II	0.32 MPA (3.2 Kgf/cm2)

Dimention For “Khedut” Sprinkler Pipe:

Nominal Diameter DN	Wall thickness of Pipes for Pressure Ratings of
	PN 2.5		PN 3.2
	Max.	Min.	Max.	Min.
(1)	(2)	(3)	(4)	(5)
63 MM	—	—	2.0	2.4
75 MM	2.0	2.4	2.5	2.9
90 MM	2.2	2.6	2.9	3.4
110 MM	2.7	3.2	3.4	3.9

Physical Properties of “Khedut” Sprinkler Pipe

Property	Value	Unit
Tensile Strength	19	MPA
Elongation	500	%
Carbon Black Content	2.5 (+-0.5)	%
Carbon Black Dispersion	Satisfactory	—
Malt Flow Index rate	0.2 to 1.0	gm / 10 min.
Density	940 to 958	kg. / m3

Comparison of “Khedut” Sprinkler Pipes with Others

Properties	Sprinkler Pipe	Galvanized Pipe
A) Weight	Light (Approx 10 time Light as compare to others)	Heavy
B) Surface	Very smooth	Rough
C) Length	6 Mt. & 3 Mt.	5-6 Mtr.
D) Flaw	Initially 50 & more flow in comparison to others & retail that standard till end.	Initially flow get reduced slowly because of rust.
E) Rusting	Do not get rusted	Get rusted
F) Fitting arrangement	Very easy, quick & leak proof	Hard to Fit
G) Life	anti. creaking male-female coupler devices	coupler may be detached from pipe
H) Cost	Very Very less Expensive	Very expensive

Resistancy of “Khedut” Sprinkler Pipe

Our “Khedut” Sprinkler pipes are resistant to

A) Mineral Acid Like

• Hydrochloric acid (50%)
• Sulfuric acid (50%)
• Sulfuric acid (30%) etc

B) Alkalis like

• Ammonium Hydroxide
• Calcium Hydroxide
• Sodium Hydroxide etc

C) Salts like

• Calcium Chloride
• Potassium Chloride
• Sodium Bicarbonate
• Sodium Chloride etc.

D) Oxidizing Agents like

• Sodium Hypochlorite
• Chlorine water
• Calcium Hypochlorite etc

E) Organic acids like

• Acetic Acid
• Steric Acid
• Hydroxyl Acetic Acid etc.

F) Oils and Derived Products like

• Crude oil sour
• Diesel fuel
• Gasoline etc.

G) Solvents like

• Acetone
• Methyl Ethyl Ketone
• Tolurre etc.,

H) Gas like

• Ammonia
• Carbon Dioxide etc.
